Self-loading concrete mixer

Self-loading concrete mixer
0086-15136236223
[email protected]

A pioneer and revolutionary of concrete production

Multiple models for selection, can be customized according to customer requirements

Self-loading concrete mixer is a mini-mobile concrete batching plant, it owns all the functions of concrete batching plant.It can load the material by itself, and mixing, transportation and discharging. It can produce concrete independently and efficiently in remote areas.

  • 1.0-5.5 m3 mixer drum as options
  • 4*4 wheels driven
  • One-piece and articulated chassis
Online Inquiry
Leave a message

Introduction

As a mature manufacturer of self-loading concrete mixer, HAMAC designed this series mobile concrete mixer which is suitable for different projects. It is equipped famous brand components such as diesel engine, hydraulic oil pump and motors, valves, seals and hose etc. It is also named as MOTORMIXER, self loader concrete mixer etc. It is easily to be operated and cost efficient to produce and distribute fresh concrete for mining, industrial complexes, shopping plazas, office buildings, warehouses, and residential homes for applications such as footings, poured foundations, floors, sidewalks, driveways, curbs, patios, pools, etc.

Advantages

It combines loading, mixing, transit and discharging; Famous brand engine, YUCHAI and CUMMINS as optionsr An electronic weighting system and printer is available, The weighing scales monitor is at the operator's convenience to certify 100% quality concrete is produced. Water pump has the ability to draw water from any water source available (ponds, Lakes, rivers, water containers, etc.) to its water tank. From its tank, the water is pumped through the flow meter, making sure the right amount of water is added, to the drum. 270 degree rotation mixing drum, it can discharge the concrete in different directions Equipped with famous brand hydraulic system for stable work performance 4*4 drive mode, it is suitable for different rough working conditions Self-loading concrete mixer Self-loading concrete mixer

Goods Delivery

Based on good quality and decades of experience, the Self-loading concrete mixer which is manufactured by HAMAC was exported to different countries. The Self-loading concrete mixer will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

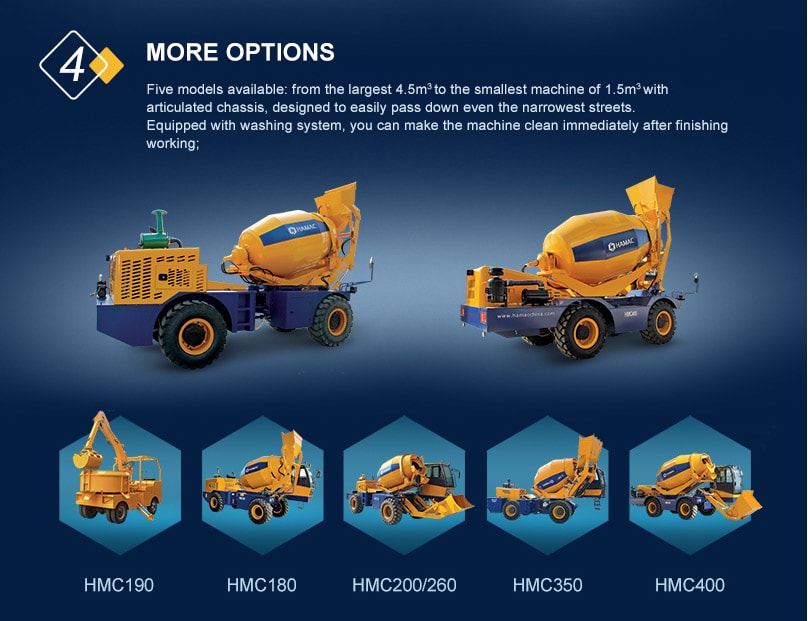

Technical Parameters

Model Output volume per batch (m3) Motor Power
(kW)
Weight
(kgs)
Overall Dimension
(mm)
HMC150 1.5 78 5700 7300*2450*3750
HMC190 1.9 30 4300 4900*2000*3000
HMC200/250 2.0/2.5 78 6500/6800 7560*2450*3950
HMC350 3.5 85 7500 7830*2480*4170
HMC400 4.0 92 8300 7800*2500*3400
HMC550 5.5 110 11200 8450*3100*4580

Note: Our products are being updated constantly, all rights reserved by HAMAC.

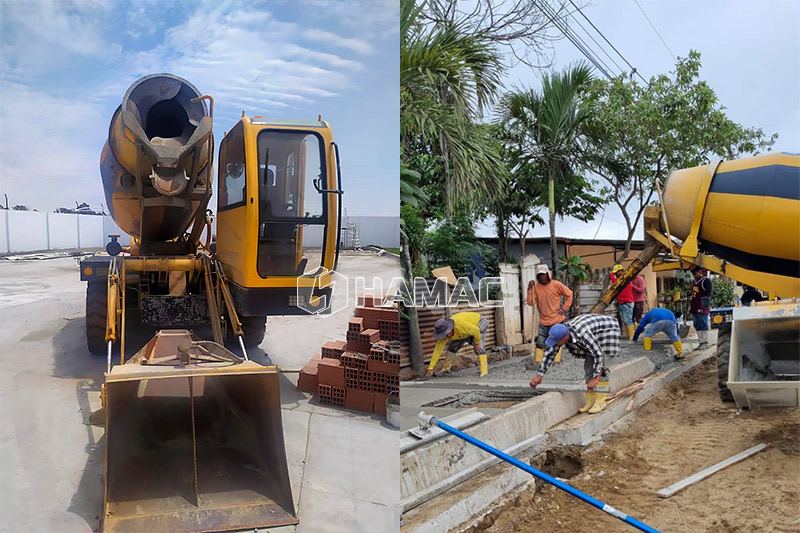

Application Case

The Self-loading concrete mixer is widely used for different projects all over the world. HAMAC exported the Self-loading concrete mixer to different countries and got good comments from our clients.
