DJBT40 Diesel Concrete Mixer Pump

DJBT40 Diesel Concrete Mixer Pump video

INTRODUCTION

In the past time, the construction subcontractor wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pump to deliver the concrete to the buildings. There will be two machines to finish this job. It required more people for the projects. In order to solve this problem and provide our customer with better solution, we researched and developed this concrete mixer with pump. You can finish all the work by the same machinery. It combined concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete. After it is sold to the market, we get a positive response from our customers. Most of them said that it is really a revolution for the mixer and pump.

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump  - Get quote or inquiry!

inquiry! Leave a Message!

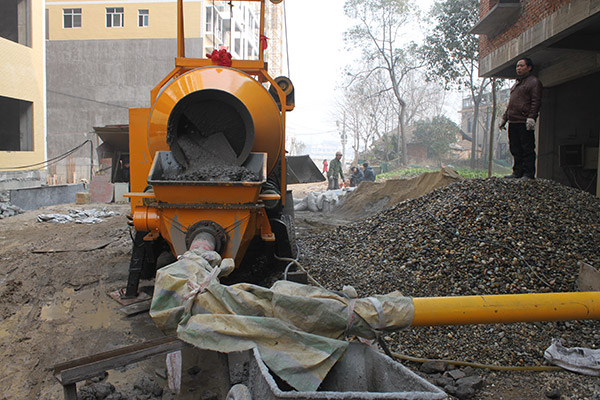

Detailed Photos

Specification

Diesel Engine Driven Concrete Mixer with Pump
Parts Name/Parameters Parts Brand Name Quantity Specification
Power Diesel Engine WEICHAI 1 pc 72 KW
Rated Rotation   1800r/m
Mixing System Mixer Domestic 1 set Drum Mixer,JZM450
Power     By Hydraulic from Engine
Submersible Pump   1 pc hydraulic water pump
Max. Theoretical Mixing Output / / 25m³/h
Pumping System Main Oil Pump Kawasaki 1pc K3V112
Double Gear Pump Domestic 1set 25&16
Valves Japanese 4sets overflow and directional valves
Main Oil Cylinder Domestic 2pcs Φ100×Φ70×800mm
Delivery Cylinder Domestic 2pcs Φ200×800mm
S Valve Domestic 1pc Φ200mm
Cutting Ring alloy 1pc Φ200mm
Glass Wear Plate alloy 1pc Φ200mm
Max. Theoretical Pumping Output / / 40m³/h
Hydraulic System Type / / Open
Hopper Capacity × Filling Height / / 600/1050(L/mm)
Max. Aggregate Size / / Pebble:40
Crushed Stone:30 mm
Outlet Pressure / / 8Mpa
Oil Tank Capacity / / 200L
Rated Speed / / 1480Rpm
Slumps / / 12-23cm
Tyre Size / / 700R16
Towing Speed / / Max. 8km/h
Overall Total Weight / / 5300kg
Machine Size(L*W*H) / / 4960*2100*2600 mm
Delivery height/horizontal distance / / 70/300m
Packing / / 1* 40HQ

Note: Our products are updated constantly, if there is any data discrepancy ,please refer to the actual product.
