6cbm Concrete Truck Mixer

6cbm Concrete Truck Mixer video

INTRODUCTION

6cbm Concrete Truck Mixer consists of special device for automobile chassis and concrete mixing and transporting, always keeping the mixing drum rotating in the transport process and it is the special vehicle with integration of mixing and transport. We specialized in manufacturing the small concrete mixer truck working for the narrow working environments, including underground coal mine, reclamation construction, high-speed rail construction, township pavement construction, rural housing construction.

Hot Sale in stock: HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck   - 6m3 Concrete Mixing Truck  - 8m3 Concrete Mixing Truck   - 10m3 Concrete Mixing Truck   - HMC1.5 Self-loading Concrete Mixer HMC4.0 Self-loading Concrete Mixer  Get quote or inquiry!

inquiry! Leave a Message!

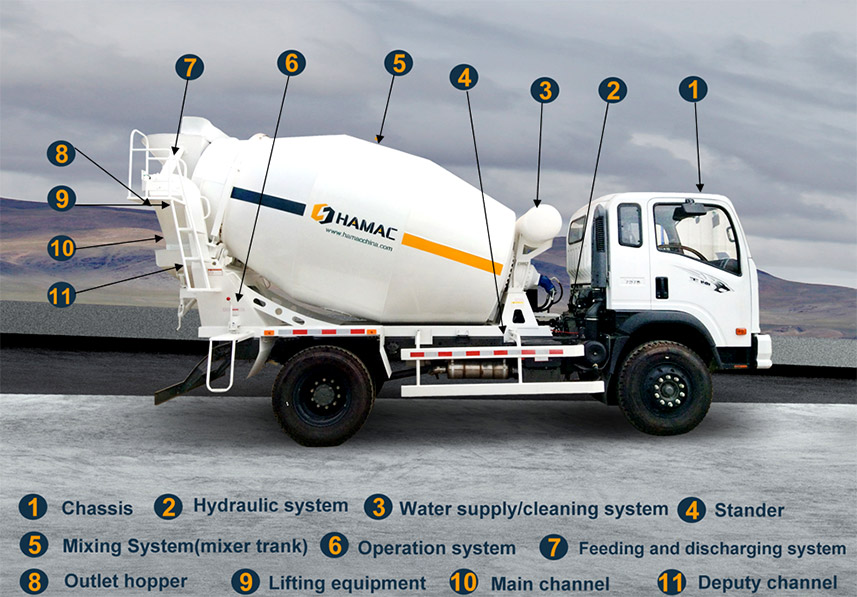

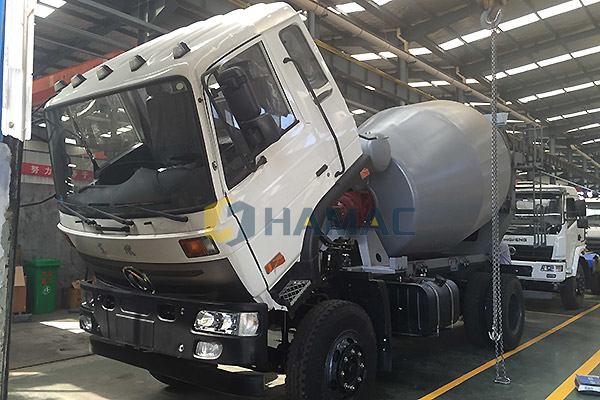

Detailed Photos

Specification

We are professional on producing the various types of concrete mixing truck. We choose the famous truck factories as our partners to provide us with the reliable chassis. Especially our small model mixing truck, it is suitable for some scale projects.

6m3 CONCRETE MIXER TRUCK STANDARD PARAMETER

Overall parameter
Overall dimension 7300*2350*3650mm
Kerb weight 8250kg
Mixing Drum parameter
Mixing drum High quality wear-resistance steel
Model:Q345
Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity 6 m3
Drum overall dimension(with frame) 4909*2208*2439mm
Mixing drum size Diameter: Φ2112mm Length: 3612mm
Charging rate ≥2m3/min
Discharging rate ≥1.5m3/min
Residual rate ≤0.5%
Water supply Sistema de suministro de agua neumática
Water tank capacity 450L
Radiator 18L
Reduction gear FUXIN Reducer,
Hydraulic pump Sunny ,America brand
Hydraulic motor Sunny ,America brand
Accessory Tool box
Chassis parameter
Chassis Brand SINO Truck WANGPAI (CDW)
Chassis model 4X2 CDW chassis
Axle base 3650
Driving type Left hand drive(LHD)
Enginemodel YC4S150-50
Rated power (HP) 150HP (110kW)
Emission standard National Standard V
Fuel type Diesel
Tyre 9.00R20
Cab type WP ( without air-conditioner )
Operating braking system Double pneumatic braking circuit
