Container type concrete batching plant

Container type concrete batching plant

INTRODUCTION

Container Type mobile concrete batching plant innovative device was designed for the production of all types of concrete, mixed cements, cold regenerations and inertizations of materials mixed with resin additives. The design includes multiple containers that separately transport all the elements necessary for the production of concrete, or any other mixture, at the specific job site. In this way, the operator can produce exactly what he wants, where he wants and in the quantity he wants through the use of an on-board computer. Once production is started, the various components enter the mixer in the required doses and the finished mixed product comes out continuously ready for final use.

inquiry! Leave a Message!

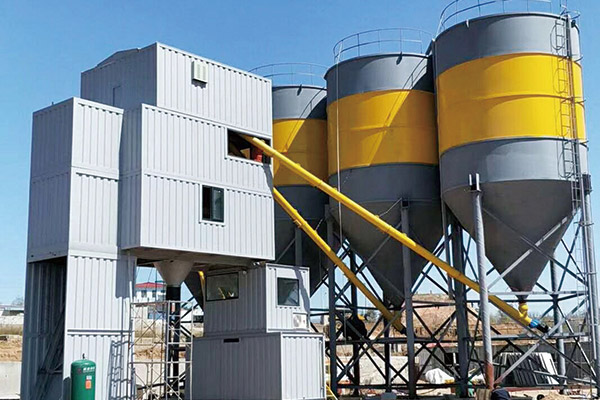

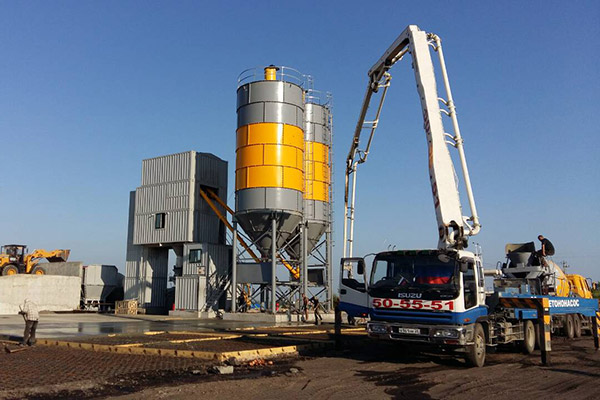

Detailed Photos

Specification

Technical data Model
HZS90 HZS120 HZS180(150) HZS240(200)
Theoretical capacity(m³/h) 90 120 180(150) 240(200)
Mixer model JS1500 JS2000 JS3000 JS4000
Batching system PLD2400 PLD3200 PLD4800 PLD6400
Discharging height (mm) 4100 4100 4100 4100
Maximum aggregates size(mm) 60(80) 60(80) 60(80) 60(80)
automatic Cycle time(s) 60 60 60(72) 60(72)
Weighing Precision of Aggregate ±2% ±2% ±2% ±2%
Weighing Precision of Cement ±1% ±1% ±1% ±1%
Weighing Precision of Water ±1% ±1% ±1% ±1%
Weighing Precision of Additive ±1% ±1% ±1% ±1%
Total power(KW) 145 175 215 295

Note: Note: Our products are being updated constantly, all rights reserved by HAMAC.
