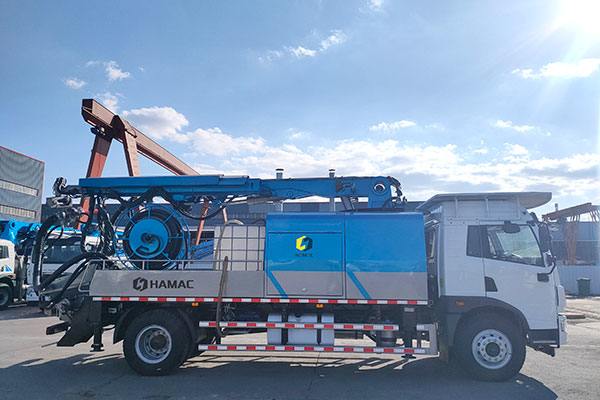

Truck-mounted Wet Shotcrete Machine

Truck-mounted Wet Shotcrete Machine video

INTRODUCTION

As a new generation HAMAC produced engineering chassis Truck-mounted Wet Shotcrete Machine, which is researched and developed after synthesizing wet shotcrete machine technology domestic and oversea, solving spraying deficiency that traditional small shotcrete machine cannot meet concrete spraying need in long and big tunnel, vastly improving the working environment for workers inside tunnel, increasing working efficiency, reducing concrete consumption, truly ensuring working quality, double power working system, lower carbon emission, Suiting environmental protection concept.

HAMAC engineering chassis Truck-mounted concrete wet spraying trolley is best choice for tunnel construction like water conservancy and hydropower, railway, highway and so on.

inquiry! Leave a Message!

Detailed Photos

Specification

HMC30 Engineering chassis Wet Shotcrete Machine (concrete wet spraying trolley)
Max. theoretic delivery volume m³/h 30
Max. theoretic delivery pressure Mpa 7.5
spraying height M 16
Main oil cylinder dia./stroke dia. mm 90/180
stroke mm 1000
Concrete cylinder dia. mm 180
distribution valve type S Valve
Dimension(length*width*height) 7880×2460×3100
total weight Kg 16000(without oil)
max.aggregate size mm 16
delivery pipe dia. mm 125~80
Work driving mode   electromotor+diesel emergency system
diesel power Kw 90
chassis model   HAMAC self-made Engineering chassis
chassis wheelbase mm 4500
max. driving speed Km/h 20
min. turning radius m inner2.4outer5.72
electromotor type three-phase asynchronous motor
related power Kw 22
related voltage/frenquency 380V-50Hz
mode full hydraulic reversing open hydraulic system
pumping oil pressure Mpa 31.5
hydraulic oil tank available volume L 600
cool type Fan cool
turret rotation angle -5°~+290°
big boom pitching   angle -30°~+60°
mid   boom pitching angle(compare with big boom) -120°~+30°
small   boom rotation angle -60°~+180°
front boom stretch length mm 2000
Rear boom Stretch length mm 2000
