Concrete Mixer with Pump

Concrete Mixer with Pump video

INTRODUCTION

According to the actual construction requirement in the rural districts, small and medium towns, and various construction projects, our company researched and developed this new versatile equipment “concrete mixer with pump” combined with concrete mixing system and concrete delivering system. It is more convenient for the customers. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

Hot Sale in stock: HMC3.5 self-loading mixer - Diesel Concrete Mixer Pump - Electric Concrete Mixer Pump - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump  - Get quote or inquiry!



inquiry! Leave a Message!

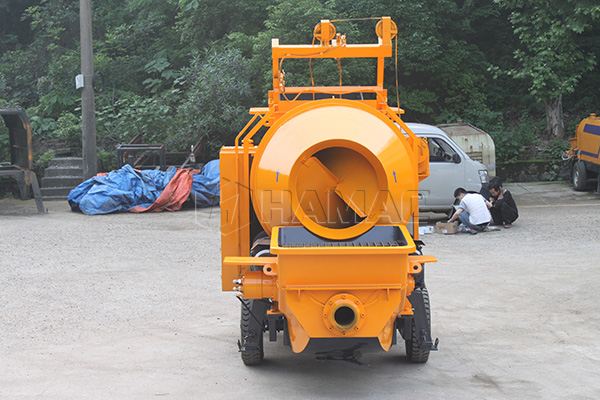

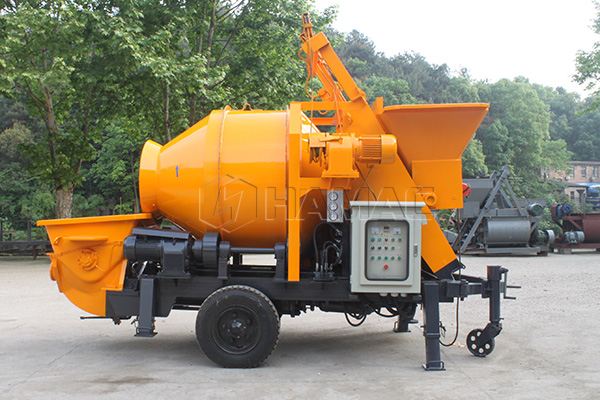

Detailed Photos

Specification

Parts Name/Parameters Parts Specification
Models JBT40 DJBT40 HBT15-L1
Power Power supply model Local electricity 3P Diesel engine  Local electricity 3P
Electric Component  Siemens/Schneider/Omron
Mixing System Mixer JZM450 drum mixer, 750L charging hopper,
450L concrete output per batch
JS500 twin shafts concrete mixer, 800L charging hopper, 500L concrete output per batch
Mixing Motor 5.5kW*2 Hydraulic  18.5kW
Hoist Motor 5.5kW Hydraulic  5.5kW
Submersible Pump 0.75kW Hydraulic  0.75kW
Max. Theoretical Mixing Output 18-22m³/h 25m³/h
Pumping System Main Motor 37KW 72kW, Weichai
diesel engine
37KW
Motor Rated Speed 1480 RPM 1800 RPM 1480 RPM
Mian Hydraulic Oil Pump KAWASAKI K3V112
Double Gear Pump 25&16
 Valves overflow and directional valves, OM, Italy brand
Main Oil Cylinder Φ100*Φ70*1000mm
Delivery Cylinder Φ200*1000mm
S Valve Φ200mm
Cutting Ring Φ200mm
Glass Wear Plate Φ200mm
Max. Theoretical Pumping Output 40m³/h
Outlet Pressure 8Mpa
Hydraulic System Type Open circuit
Motor Rated Voltage Customized  Diesel engine Customized
Max. Aggregate Size Pebble:40mm  Aggregate:30mm
Delivery height and horizontal distance 70m/300m
Hydraulic Oil Tank Volume 200L
Concrete Outlet Diameter  Φ180mm
Hopper Capacity × Filling Height 600*1400 (L*mm)
Machine Size(LxWxH) 5100*2200*2450 mm
Total Weight 5300kgs 5600kgs 7000kgs
Tyre Size 700R16
Towing Speed Max. 8km/h

Note: Our products are being updated constantly, all rights reserved by HAMAC.
