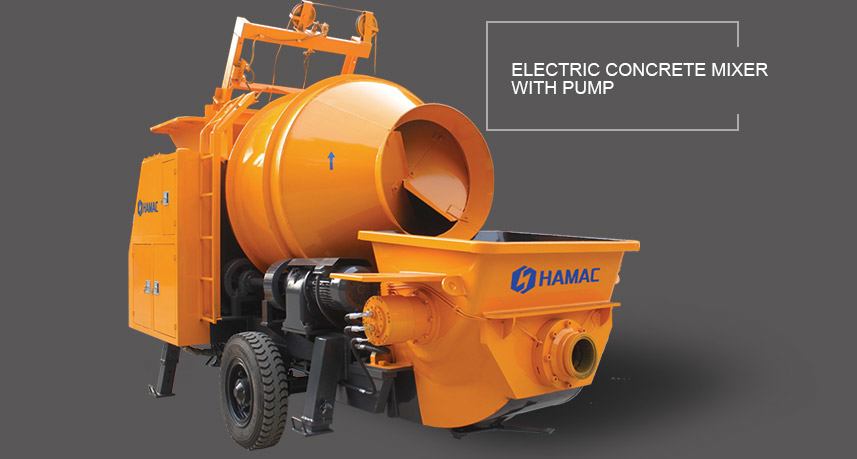

JBT40 Electric Concrete Mixer Pump

JBT40 Electric Concrete Mixer Pump video

INTRODUCTION

As the name implies, the power system of electric concrete mixer pump machine is motor. Because using electricity is environmental and convenient, it is a popular choice for many people. In the past time, the construction subcontractor wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pump to deliver the concrete to the buildings. There will be two machines to finish this job. It required more people for the projects. In order to solve this problem and provide our customer with better solution. We researched and developed this concrete mixer with pump. You can finish all the work by the same machinery. It combined concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete. After it is sold to the market, we get a positive response from our customers. Most of them said that it is really a revolution for the mixer and pump.

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - jbt40 Concrete mixer and pump - DJBT40 Concrete mixing pump  - Get quote or inquiry!

inquiry! Leave a Message!

Detailed Photos

Specification

Electric Driven Concrete Mixer with Pump
Different parts and information Brand/Origin Quantity Specification
Power 380V Local Electric 1 pc Customized accept
Electric Component / /  Siemens/Schneider/Omron
Mixing System Mixer Domestic 1 set JZM450 drum mixer
Mixing Motor Domestic 2 pc 5.5KW
Hoist Motor Nanjing te zhong 1 pc 5.5KW
Submersible Pump Shanghai Bali 1 pc 0.75KW, pumping water to mixer
Max. Theoretical Mixing Output / / 18-22m³/h
Pumping System Main Motor Siemens/Zhaoyang 1pc 37KW
Motor Rated Speed / / 1480Rpm
Main Oil Pump Kawasaki 112 1pc  40 cubic meters per hour.
Double Gear Pump Domestic 1set 25&16
 Valves Tokyo Keiki 4sets overflow and directional valves
Main Oil Cylinder Domestic 2pcs Φ100*Φ70*1000mm
Delivery Cylinder Domestic 2pcs Φ200*1000mm
S Valve Domestic 1pc Φ200mm
Cutting Ring alloy 1pc Φ200mm
Glass Wear Plate alloy 1pc Φ200mm
Max. Theoretical Pumping Output / / 40m³/h
Outlet Pressure / / 8Mpa
Hydraulic System Type / / Open
Motor Rated Voltage / / 380v
Max. Aggregate Size / / Pebble:40  Crushed Stone:30
Concrete Outlet Diameter  / / Φ180mm
Hopper Capacity × Filling Height / / 800*1000 (L*mm)
Machine Size(LxWxH) / / 4960*2100*2500 mm
Total Weight / / 5300kg
Tyre Size / / 700R16
Towing Speed / / Max. 8km/h

Note: Our products are updated constantly, if there is any data discrepancy ,please refer to the actual product.
