JZR Diesel Driven Concrete Mixer

JZR Diesel Driven Concrete Mixer video

INTRODUCTION

JZR series diesel concrete mixer (concrete agitator AND Diesel Concrete Mixer with Lifting Bucket) is driven by diesel engine. There are two feeding modes: climbing bucket feeding and dump hopper feeding. JZR series diesel engine concrete mixer can be drawn by wheels, so it is easy to move. It is controlled by electric control box, which makes the operation very easy. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump  - Get quote or inquiry!

inquiry! Leave a Message!

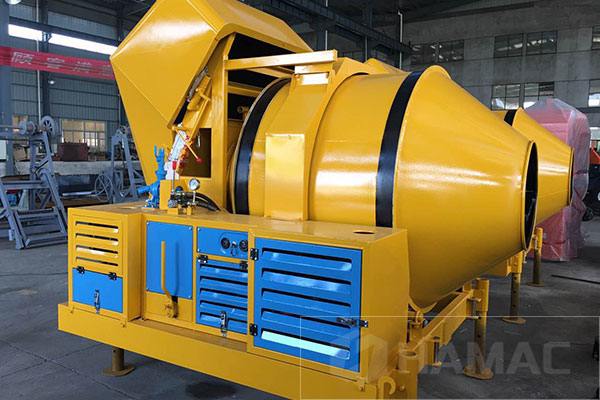

Detailed Photos

Specification

Diesel Concrete Mixer:

Model JZR350DW JZR350DH JZR500DH
Discharging Capacity(L) 350 350 500
Charging Capacity(L) 560 560 800
Productivity(m3/h) 10-14 10-14 20-22
Maximum Size
of Aggregate(mm)
60 60 80
Hopper Lifting Hydraulic system Hydraulic system Hydraulic system
Diesel Engine Power(kw) 13.2 13.2 16.2
Power of Water Pump(kw) 0.75 0.75 2.2-3
Accuracy of Water Supply Error≤2﹪ Error≤2﹪ Error≤2﹪
Dimensions in
Container (mm)
2750×2200×2400 2300×1900×2500 2300×3300×2500
Overall Weight (kg) 1350 1400 2300

Diesel Concrete Mixer with Lifting Bucket:

Model JZC350-DHL
Discharging Capacity 350L
Loading Capacity 560L
Lifting Bucket Capacity 200L
Productivity 10-14m3/h
Bags of Cement per batch 2 Bag Cement
Drum Thickness 6mm
Drum Size Φ1460×1760mm
Rated Lifting Height 17m



Engine Option

Water-cooled JIANGDONG
Diesel Engine ZS1100(16HP)
Water-cooled CHANGFA
Diesel Engine CF1100(16HP)
Water-cooled CHANGCHAI
Diesel Engine ZS1100(16HP)
Displace of Hydraulic Pump 25ml/r
Max. Size of Aggregate 60mm
Drum Rotation Speed 14rpm
Total Weight 2300kg
Overall Size(L*W*H) 3300×2300×3100mm
Packing Size(L*W*H) 2300×2000×2500mm
Container Loading Plan 2 Sets/20GP, 5 Sets/40HQ

Note: Our products are being updated constantly, all rights reserved by HAMAC.
