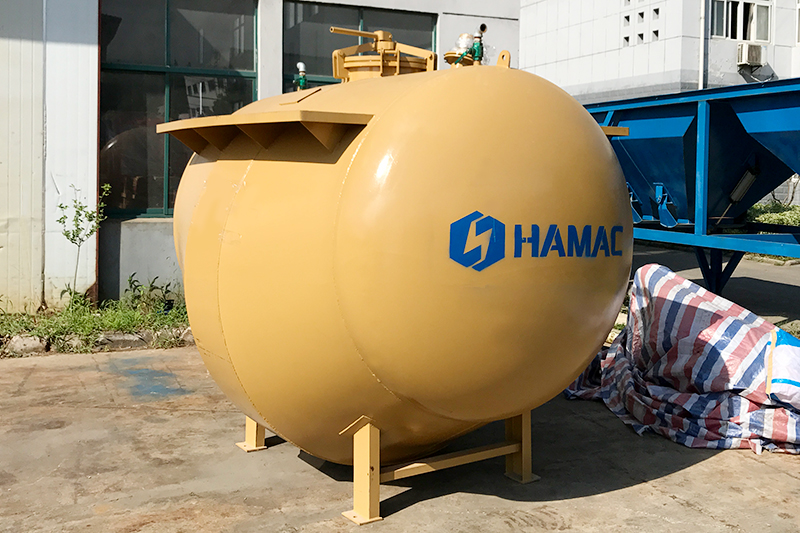

Bulk Cement Pneumatic Conveyor

Bulk Cement Pneumatic Conveyor
0086-15136236223
[email protected]

A device to blow the bag cement into cement silo

Multiple models for selection, can be customized according to customer requirements

Bulk cement pneumatic conveyor is a pneumatic conveying device with advanced structure, which adopts fluidized pressure feeding technology, unique fluidized bed design, and high blowing and unloading efficiency.

  • 5-8m3 per tank as options
  • Famous brand accessories
  • Fully customized as request
Online Inquiry
Leave a message

Introduction

Bulk cement pneumatic conveyor is suitable for conveying non-viscous or small granular materials such as cement, grain and fly ash. The discharge port joint adopts the quick joint of the bulk cement truck, which is convenient to cooperate with the cement truck to realize alternate feeding.

Advantages

  • 1.large capacity, high volume utilization;
  • 2.convenient installation and adjustment;
  • 3.compact structure, light weight, easy operation and convenient transfer;
  • 4.Less restricted by terrain and is convenient for process layout;

Goods Delivery

Based on good quality and decades of experience, the Bulk Cement Pneumatic Conveyor which is manufactured by HAMAC was exported to different countries. The Bulk Cement Pneumatic Conveyor will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters


Tank form Double cone Double cone
Tank volume(m³) 5 8
Continuous blow efficiency(t/min) 0.8~1.2 0.8~1.2
Residual volume(%) <0.4 <0.4
Working pressure(Mpa) 0.19 0.19
Inner diameter of discharging pipe(mm) 100 100
Weight  (kg) 1600 1800
Overall dimension (mm) 2540×2010×2400 3200×2300×2720
Lx W x H
Displacement of air compressor 6m³/min 6m³/min
Motor power 15kW 22kW
Weight of air resource 456 kg 456 kg
Overall dimension (mm) 1350×920×700 1350×920×700

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Bulk Cement Pneumatic Conveyor is widely used for different projects all over the world. HAMAC exported the Bulk Cement Pneumatic Conveyor to different countries and got good comments from our clients.
