An ideal crusher for stone of low hardness

Multiple models for selection, can be customized according to customer requirements

The impact crusher (impact crusher) is a new generation of impact crusher developed in combination with the specific working conditions of the sand and gravel. The equipment adopts very new manufacturing technology and unique structural design. The crushed aggregates are cubical shape, without tension and cracks, with good round shape. The discharge particle size can be adjusted, and the crushing specifications are diversified.

  • From 50-500 tons per hour
  • High quality manganese steel
  • Three crushing chamber
Online Inquiry
Leave a message

Introduction

Impact crusher is usually used as secondary crusher to crusher the stone which is not so hard such as limestone, barite and construction waste etc. The impact crusher is composed of casing body, rotor and impact plate. Impact crushers use impact energy to crush materials. It is widely used in hydropower, highway, artificial sand and gravel, crushing and other industries.

Working Principle of impact crusher:

Driven by the motor, the rotor rotates at a high speed. When the stone enters the action area of the blow bar, it collides with the blow bar on the rotor and is crushed, and then is thrown to the impact plates to be crushed again, and then bounces back from the impact plate liner. Re-crushing in the action zone of the blow bar, this process is repeated, the material enters the first, second, third impact chambers from large to small for repeated crushing. When the particle size of the crushed stone is smaller than the gap between the blow bar and the impact plate, it is discharged from the lower part of the machine. Adjusting the gap between the impact frame and the rotor can change the output size.

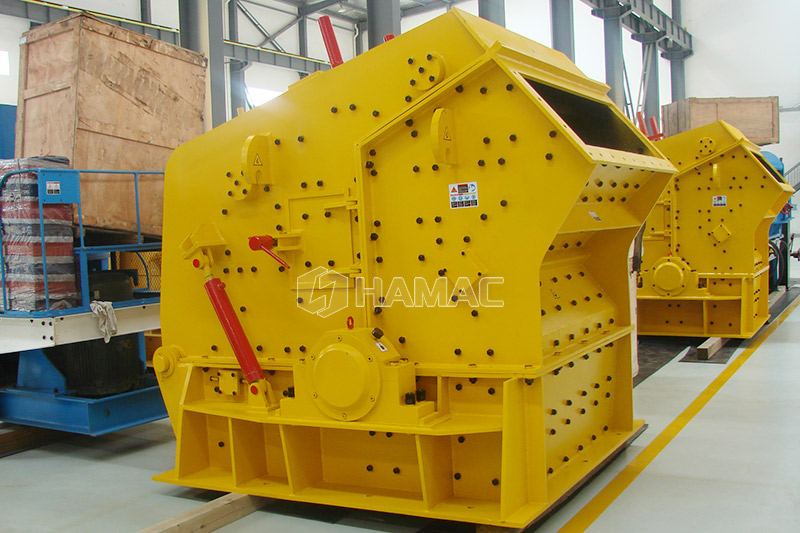

Impact crusher

Advantages

  • 1. Low and large feed opening, it is more convenient for the production line selection and bigger feeding size;
  • 2. Unique structure, keyless connection, strong rigidity and large rotor moment of inertia. High chromium blow bar, impact resistance, wear resistance.
  • 3. The crushed stone shape is cubical and round shape. The size of the discharge particle size is adjustable, which simplifies the crushing process.
  • 4. New wear-resistant material for longer life of blow bars, impact plates and liners

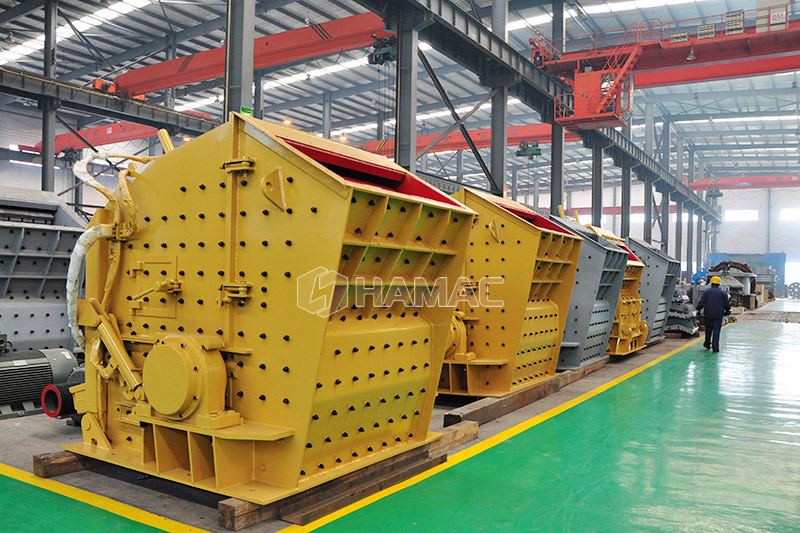

Goods Delivery

Based on good quality and decades of experience, the Impact Crusher which is manufactured by HAMAC was exported to different countries. The Impact Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

Model Rotor size(mm) Feed opening(mm) Max. Feeding size(mm) Capacity(t/h) Motor Power(kW) Weight
(t)
Overall dimension(mm)
PF-1007 Φ1000×700 400×730 300 30-70 37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 45-55 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 220 27 3180×2720×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 315-400 50.6 3959×3564×3330
PF-1620 Φ1600×2000 2000×1600 500 400-700 400-500 58 4259×3660×3450
PF-1820 Φ1800×2000 1260×2040 800 600-800 630-710 83.21 4400×3866×4009

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Impact Crusher is widely used for different projects all over the world. HAMAC exported the Impact Crusher to different countries and got good comments from our clients.
