A production line can provide blocks, bricks and paver

Multiple models for selection, can be customized according to customer requirements

A fully automatic concrete block making machine production line includes aggregate batching machine, JS twin shaft concrete mixer or JQ pan mixer or planetary concrete mixer to produce concrete, concrete block making machine, automatic stacker and pallet feeding machine as options.

  • Mobile and stationary type as options
  • Fully automatic controlled by software
  • Various models for different capacity
Online Inquiry
Leave a message

Introduction

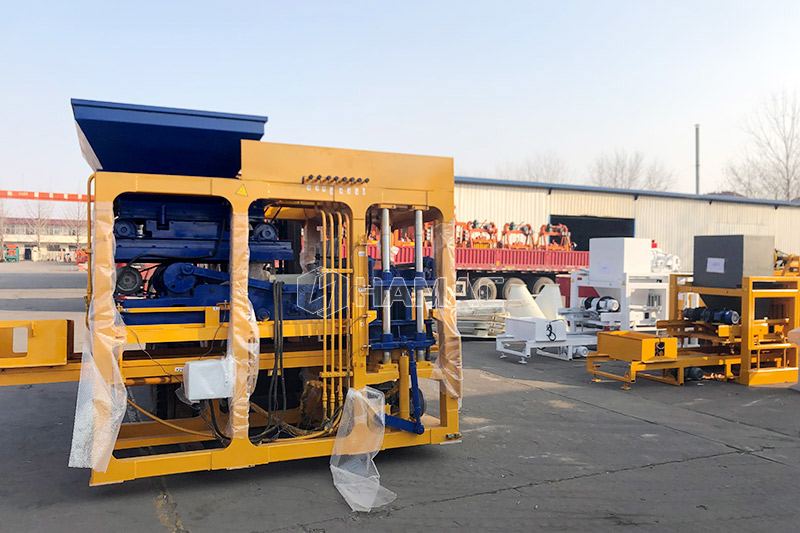

HAMAC QT series concrete production line is a concrete block making equipment. By changing the moulds, it can produce different kinds of concrete hollow block, solid brick and paver bricks. This equipment is the most advanced, reliable machine for making high quality, high intensity concrete blocks or fly-ash bricks. Multiple producing lines with different configurations can satisfy clients' manufacturing and capacity requirement of most concrete products.

Advantages

  • 1. One machine is multi-purpose, saving money and labor; by changing the mold used by the concrete block machine, you can produce the different sizes blocks or bricks;
  • 2. Automatic frequency conversion, intelligent control, the cement brick making machine adopts PLC intelligent control to realize automatic production; adopts frequency conversion technology to change the rotation speed of the motor according to the demand, so as to prevent the motor from running at a high speed for a long time during the production process, realize the protection of the motor and prolong the service life of the motor.
  • 3. The body is made of strong steel and special welding technology and materials, which is strong and shockproof;
  • 4. Up and down pressure, strong vibration, especially suitable for the production of heavy-duty high-strength blocks, the strength can reach 20MPa;
  • 5. Automatic diagnosis: It can automatically diagnose faults from the computer system and prompt an alarm, which is conducive to troubleshooting in time;
  • 6. The color material supplying system as option, it can be used to produce the colorful pavers;

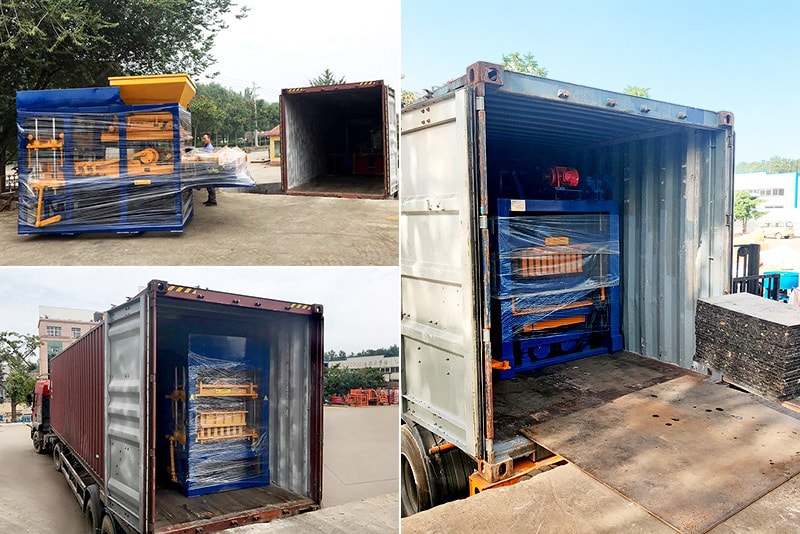

Goods Delivery

Based on good quality and decades of experience, the Concrete Block Production Line which is manufactured by HAMAC was exported to different countries. The Concrete Block Production Line will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

QT4-15 Automatic concrete brick forming machine Main technical parameters:

Dimension 3600×1800×2600mm Motor Power 29.4KW
Mould Area 550×900mm Vibration Force 50KN
Working Cycle 15-18S Concrete Mixer Model JS500
Size Of The Pallet 900×550×30mm Weight Of The Block Making Machine 5800kgs

QT5-20 Automatic concrete block forming machine Main technical parameters:

Dimension 3650×2100×2720mm Motor Power 20KW
Mould Area 550×1100mm Vibration Force 50KN
Working Cycle 16-25S Concrete Mixer Model JS500
Size Of The Pallet 1100×550×30mm Weight Of The Block Making Machine 6000kgs

QT6-15 Automatic concrete brick machine Main technical parameters:

Dimension 4410×2000×2510mm Motor Power 36.4KW
Mould Area 680×900mm Vibration Force 50KN
Working Cycle 15-18S Concrete Mixer Model JS500
Size Of The Pallet 900×680×30mm Weight Of The Block Making Machine 6000kgs

QT8-15 Automatic hydraulic block making machine Main technical parameters:

Dimension 4900x2120x2650 mm Motor Power 46.4KW
Mould Area 850×900mm Vibration Force 50KN
Working Cycle 15-18S Concrete Mixer Model JS750

Size Of The Pallet

900×850×35mm

Weight Of The Block Making Machine

6500kgs

QT10-15 Automatic concrete block machine Main technical parameters:

Dimension 7500x2500x3020 Mm Motor Power 50.88KW
Mould Area 1220×900mm Vibration Force 50KN
Working Cycle 15-18S Concrete Mixer Model JS750
Size Of The Pallet 1220×900×35mm Weight Of The Block Making Machine 7000kgs

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Concrete Block Production Line is widely used for different projects all over the world. HAMAC exported the Concrete Block Production Line to different countries and got good comments from our clients.
