An ideal equipment for hard stone quarry and mining industry

Multiple models for selection, can be customized according to customer requirements

This is a new crushing machine developed by HAMAC. It is high efficient, energy saving, environmental-friendly, and economic. The company has more than ten national patents technology which are widely used in metallurgical industry, building materials, road construction and chemical industry. It is suitable for crushing ores and rocks with various hardness and material quality. The products are divided into coarse crushing, medium coarse crushing, fine crushing according to the requirements of crushing operation.

  • Simple design
  • Excellent final product shape
  • Save time and cost on maintenance
Online Inquiry
Leave a message

Introduction

HMC Series compound cone crusher has hydraulic clearing system, hydraulic opening adjusting function, easy for placing concave and mantle, decreasing management and maintenance cost, It is widely used for medium and fine crushing of granite, basalt, disbase, cobble, cobblestone, iron ore etc.

Working Principle of compound cone crusher:

When the machine is working, the moving cone of the crusher makes a swinging motion around the fixed point. Therefore, the crushing walls of the movable cone and the fixed cone of the crusher are sometimes approached and sometimes separated, so that the materials are continuously impacted, squeezed and bent in the crushing cavity to realize the crushing of the materials, and complete the crushing and discharging. The surface of the crushing cavity is covered with a wear-resistant high manganese steel lining plate. The size of the discharge opening is adjusted hydraulically or manually.

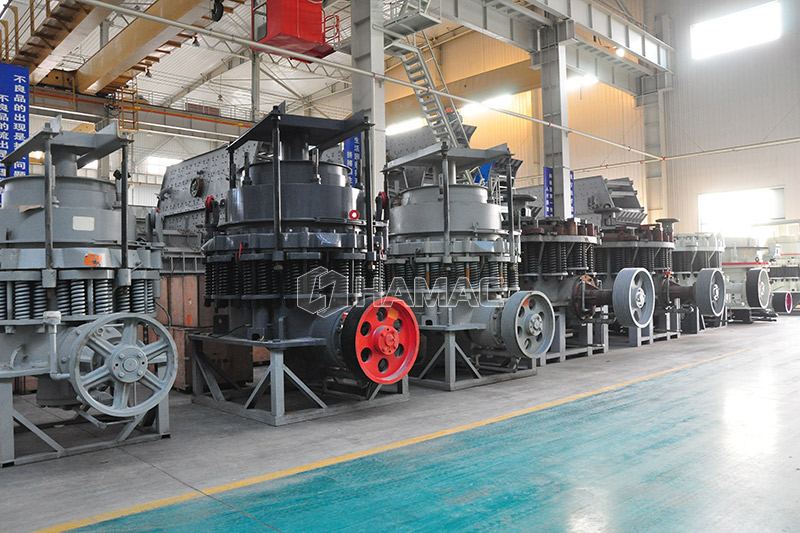

compound cone crusher

Advantages

  • 1.The machine body is robust, good appearance and durable.
  • 2.Semi-automatically control, hydraulically adjusted, it can effectively control the size of sand and stone, can be adjusted quickly and convenient.
  • 3.The concave and mantle has no filling material in it, so it is easily to be replaced. The concave and mantle, Mounting surfaces are precisely made in the special machine tools with special design.
  • 4.The crushing cavity is specially designed. It can greatly increase the production capacity.
  • 5.It provides iron protection, and is safe and reliable, cavity automatic clearing, fast running and time-saving.
  • 6.The machine is a structure of labyrinth, has good grease sealing and dust prevention effect.
  • 7.The oil circulation cooling system is designed according to a lot of domestic customers’ actual situation and characteristics. The temperature control system and pressure control system are easy to control and operate.
  • 8.The copper set is made with special formula and processing technology, and it is durable.
  • 9.It is designed to be light and compact with reasonable structure.

Goods Delivery

Based on good quality and decades of experience, the Compound Cone Crusher which is manufactured by HAMAC was exported to different countries. The Compound Cone Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

Model  Cavity Type  Stroke
(mm)
 Max. Feeding Size(mm)  Discharging Opening (mm)  Capacity(t/h)  Motor Power(Kw)  Weight(t)
HMC1650C2-D Coarse 34 300 35-65 280-610 250 35
HMC1650C-D Coarse 34 260 30-60 2665-580 250 35
HMC1650Z-D Medium Coarse 34 240 25-60 240-550 250 35
HMC1650S-X Fine 28 130 20-45 180-350 250 35
HMC1400C-D Coarse 30 235 30-60 210-530 220 25
HMC1400Z-D Medium Coarse 30 215 25-50 200-500 220 25
HMC1400Z-X Medium Coarse 25 180 22-45 180-475 220 25
HMC1400S-X Fine 25 100 19-40 130-260 220 25
HMC1200C-D Coarse 22 180 19-50 110-250 132 16
HMC1200S-X fine 15 80 16-40 80-180 132 16

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Compound Cone Crusher is widely used for different projects all over the world. HAMAC exported the Compound Cone Crusher to different countries and got good comments from our clients.
