An ideal equipment for hard stone quarry and mining industry

Multiple models for selection, can be customized according to customer requirements

HP Series of highly efficient Hydraulic Cone Crusher is a world-level cone crusher introduced with the up-to-the-minute technology of Germany. This series cone crusher not only improves the production capacity and crushing efficiency, but also widens applying area, hardness range of materials from limestone to basalt. It has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the field of mining and construction.

  • Full hydraulic design
  • Excellent final product shape
  • Small volume but high efficiency
Online Inquiry
Leave a message

Introduction

The technology of HPT series multi-cylinder hydraulic cone crusher can obtain larger output capacity in smaller space with less or smaller volume of equipment. The HPT multi-cylinder hydraulic cone crusher adopts the full chamber feeding to realize the unique "inter-particle lamination crushing". When the material passes through the crushing chamber, the principle of multiple crushing action makes the particle size more uniform. For aggregates production, the cubic shape of the product meets the sand and gravel industry standards, thereby bringing greater investment benefits to users.

Working Principle of hydraulic cone crusher:

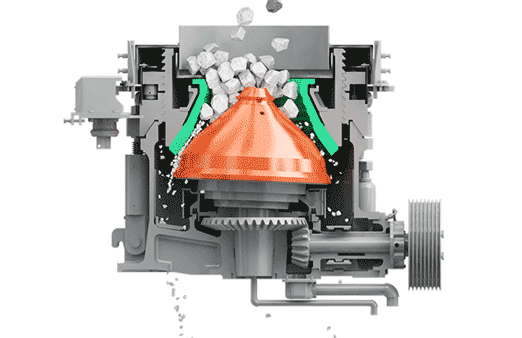

As is shown, the motor drives eccentric bushing revolve via V-belt, driving shaft and bevel gear. The mantle is revolved under the action of eccentric bushing. Sometimes, the concave is near to mantle sometime, the concave is far from mantle. The raw material is being pressed and impacted all the time in the crushing chamber. Then the crushed the material is discharged from the discharge opening.

multi cylinders cone crusher

Advantages

  • 1. High efficiency: The machine adopts the optimized structure of fixed main shaft and small spherical shaft, which is 5% ~ 15% higher than the efficiency of the old spring cone crusher.
  • 2. Large production capacity: The machine is designed with a perfect combination of crushing stroke, crushing speed and crushing chamber shape, so that the output of this machine is 35% ~ 60% higher than that of the old spring cone crusher under the same crushing cone size.
  • 3. High-quality aggregate: The machine adopts the unique lamination crushing principle to produce the crushing effect between different aggregates, so that the proportion of cubes in the finished product is significantly increased, the needle-shaped stones are reduced, and the particle size is more uniform.
  • 4. More stable operation: When there are hard objects such as iron blocks that cannot be broken into the machine, the over-iron protection device will automatically release it and then reset it immediately.
  • 5. Multi-point split hydraulic lubrication control system can ensure double protection of bearing lubrication and overload protection of the machine.

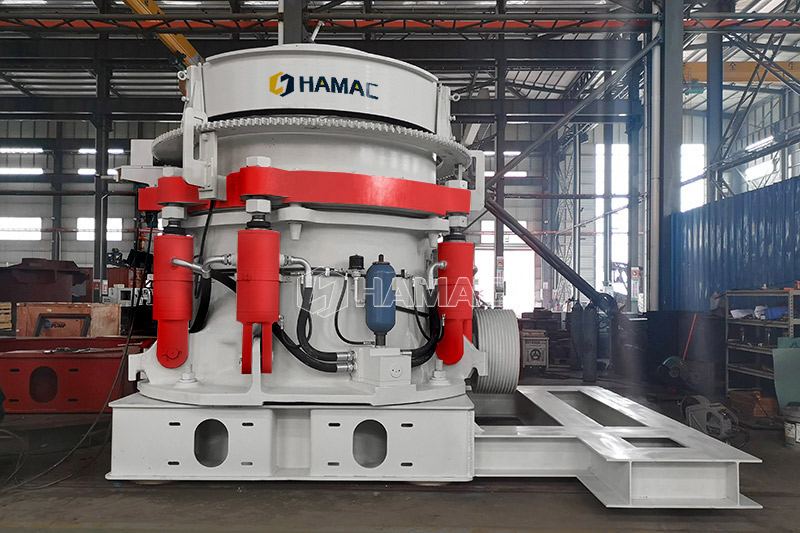

Goods Delivery

Based on good quality and decades of experience, the Multi Cylinders Cone Crusher which is manufactured by HAMAC was exported to different countries. The Multi Cylinders Cone Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

Model Crushing Chamber Standard type Short heard type Power
(kw)
Capacity
(t/h)
Feeding opening
(mm)
Min. Discharge opening
(mm)
Feeding opening
(mm)
Min. Discharge opening
(mm)
HPT200 Extra Coarse(EC) 132-200 90-250
Coarse(C) 185 19 76 10
Medium(M) 125 17 54 6
Fine(F) 95 13 23 6
Extra fine(EF) 10 5
HPT300 Extra Coarse(EC) 230 25 180-250 115-440
Coarse(C) 210 20 10
Medium(M) 150 15 50
Fine(F) 105 10 20 6
Extra fine(EF) 20 6
HPT400 Extra Coarse(EC) 295 30 280-355 140-630
Coarse(C) 250 25 90 10
Medium(M) 195 20 8
Fine(F) 110 14 40 6
Extra fine(EF) 30 6
HPT500 Extra Coarse(EC) 330 30 355-450 175-790
Coarse(C) 285 25 90 13
Medium(M) 200 20 55 10
Fine(F) 133 16 40 8
Extra fine(EF)     35 6

Model 10mm 13mm 16mm 19mm 22mm 25mm 32mm 38mm 45mm 51mm
HPT200 t/h 90-120 120-150 140-180 150-190 |160-200 170-220 190-235 210-250
HPT300 t/h 115-140 150-185 180-220 200-240 220-260 230-280 250-320 300-380 350-440
HPT400 t/h 140-175 185-230 225-280 255-320 |275-345 295-370 325-430 360-490 410-560 465-630
HPT500 t/h 175-220 230-290 280-350 320-400 |345-430 365-455 405-535 445-605 510-700 580-790

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Multi Cylinders Cone Crusher is widely used for different projects all over the world. HAMAC exported the Multi Cylinders Cone Crusher to different countries and got good comments from our clients.
