Trailer Concrete Mixer Pump

0086-15136236223

[email protected]

A new designed versatile machine, one stop solution for concrete mixing and pumping.

A new designed versatile machine, movable and easily to be operated

According to the requirement of our clients, HAMAC researched and developed this concrete mixer with pump. You can finish all the work by only one machine. It combines concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete.

Diesel engine type and electric motor type
Drum mixer and twin shaft mixer as options
Can pump 70m high, 300m horizontal distance

Online Inquiry

Leave a message

Introduction

In the past time, the clients wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pumping machine to deliver the concrete to the buildings or jobsites. There will be two machines to finish the job. It required more people for the projects.

As a mature manufacturer of concrete pumping machines, HAMAC designed this series portable diesel concrete mixer with pump which is suitable for different projects. We have two options, one type is equipped with drum concrete mixer, another type is equipped with twin shaft concrete mixer which can mix the concrete uniformly.

Advantages

Concrete Mixer with Pump

Goods Delivery

Based on good quality and decades of experience, the Trailer Concrete Mixer Pump which is manufactured by HAMAC was exported to different countries. The Trailer Concrete Mixer Pump will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

Parts Name/Parameters		Parts Specification
Models		HBT15	DHBT15E	DHBT15	DHBT15 PRO
Power	Power supply model	Electric Motor	Diesel engine	Diesel engine	Diesel engine
Power	Electric Component	Siemens/Schneider/Omron
Mixing System	Mixer	JZM450 drum mixer, 750L charging hopper, 450L concrete output per batch
	Mixing Motor	Hydraulic	Hydraulic	Hydraulic	Hydraulic
	Hoist Motor	Hydraulic	Hydraulic	Hydraulic	Hydraulic
	Submersible Pump	0.75kW		0.75kW	0.75kW
	Max. Theoretical Mixing Output	18-22m³/h
Pumping System	Main Motor	45kW, electric motor	52kW, Weichai diesel engine	62kW, Weichai diesel engine	92kW, Weichai diesel engine
	Motor Rated Speed	1480 RPM	1800 RPM	1800 RPM	1800 RPM
	Mian Hydraulic Oil Pump	KAWASAKI K3V112	Domestic brand K3V80	KAWASAKI K3V112	KAWASAKI K3V140
	Double Gear Pump	25&16
	Valves	overflow and directional valves, OM/HUADE, Italy brand/China brand
	Main Oil Cylinder	Φ100Φ701000mm
	Delivery Cylinder	Φ200*1000mm
	S Valve	Φ200mm
	Cutting Ring	Φ200mm
	Glass Wear Plate	Φ200mm
	Max. Theoretical Pumping Output	40m³/h
	Outlet Pressure	10Mpa	6Mpa	8Mpa	10Mpa
	Hydraulic System Type	Open circuit
	Motor Rated Voltage	380V, 3P	Diesel engine	Diesel engine	Diesel engine
	Max. Aggregate Size	Pebble:40mm Aggregate:30mm
	Delivery height and horizontal distance	70m/300m
	Hydraulic Oil Tank Volume	200L
	Concrete Outlet Diameter	Φ180mm
	Hopper Capacity × Filling Height	6001400 (Lmm)
	Machine Size(LxWxH)	510022002450 mm
	Total Weight	5600kgs	5300kgs	5600kgs	5800kgs
	Tyre Size	700R16
	Towing Speed	Max. 8km/h

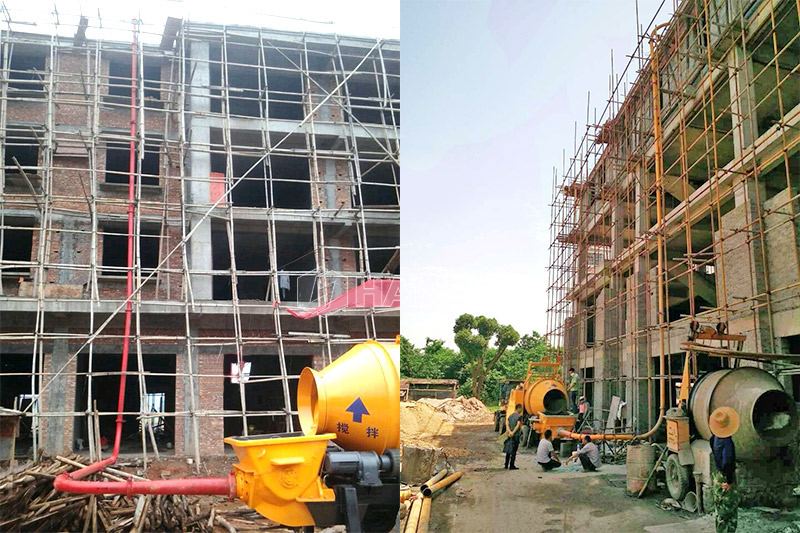

Application Case

The Trailer Concrete Mixer Pump is widely used for different projects all over the world. HAMAC exported the Trailer Concrete Mixer Pump to different countries and got good comments from our clients.
