Jaw Crusher
0086-15136236223
[email protected]

The widely used primary crusher for big size stone

Multiple models for selection, can be customized according to customer requirements

Jaw crushers are often used for primary crushing in mine material crushing. Jaw crusher is an equipment developed for aggregate crushing of highways, railways, airport runways and other engineering constructions. The jaw crusher produced by HAMAC adopts new crushing technology and manufacturing level, and is an ideal product for crushing hard and highly abrasive materials. Compared with the traditional jaw crusher, the HAMAC jaw crusher shows its superiority in terms of service life, maintenance rate and failure rate.

  • From 10-1000 tons per hour
  • High quality manganese steel
  • V type crushing chamber
Online Inquiry
Leave a message

Introduction

Jaw crusher, also known as "tiger mouth". It is widely used in the crushing of various ores and stones in mining and smelting, building materials, highways, railways, water conservancy and chemical industries. The higher compressive strength of the crushed material is 320Mpa. Jaw crushers are mainly used as primary and secondary crushers in mining, building materials, infrastructure and other sectors. According to the width of the feed opening, it is divided into three types: large, medium and small. The width of the feeding opening is larger than 600MM is a large machine, the width of the feeding opening is 300-600MM is a medium-sized machine, and the width of the feeding opening is less than 300MM is a small machine. Different models as options, famous brand bearings, Eccentric shaft and eccentric block are available

Working Principle of jaw crusher:

The jaw crusher is mainly composed of the frame, the eccentric shaft rotating part, the working part of the crushing cavity, the safety device, the discharge opening adjustment device, etc. The crushing method of the jaw crusher is a curved extrusion type. The motor drives the belt and pulley, and the movable jaw swings back and forth through the eccentric shaft. When the movable jaw pushes the movable jaw to move toward the stationary jaw plate, the material is crushed. When the movable jaw and the movable jaw plate retreat under the action of the eccentric shaft and the spring, the previously crushed materials are discharged from the lower discharge opening of the jaw plate. With the continuous rotation of the motor, the crusher jaws periodically crush and discharge materials to achieve mass production.

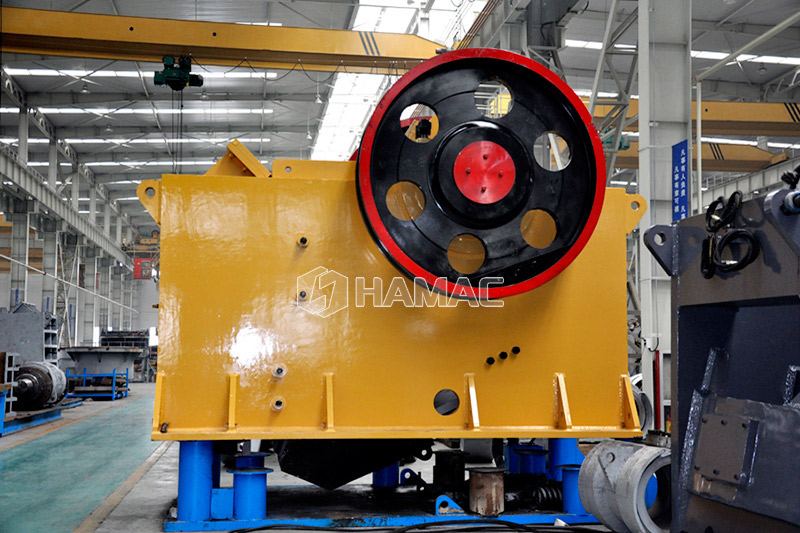

Jaw Crusher

Advantages

  • 1.Deep crushing chamber, low consumption and energy saving; optimized deep crushing chamber, no dead zone, greatly improved feeding and crushing efficiency, single machine energy saving 15%-30%, system energy saving more than double.
  • 2.Strong bearing capacity and high stability. Larger forging blanks can process heavy eccentric shafts, high manganese steel jaw plates and high-grade cast steel movable jaw assemblies. The jaw crusher has stronger bearing capacity and higher stability.
  • 3.Centralized lubrication system, easy to be maintained, the uniquely designed centralized lubrication system makes the lubrication of components faster and the maintenance workload is small.
  • 4.The discharge adjustment range is large, one machine is multi-purpose, the gasket-type discharge adjustment device has a large discharge adjustment range, which increases the flexibility of the equipment and can meet various processing requirements of customers.

Goods Delivery

Based on good quality and decades of experience, the Jaw Crusher which is manufactured by HAMAC was exported to different countries. The Jaw Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

Model Input Size(Mm) Max Feeding Size (Mm) Output Adjustable Range (Mm) Capacity(T/H) Engine Power (KW) Weight (T) Dimensions (Mm)
PE400×600 400×600 340 40-100 16-60 30 6.7 1797×1716×1581
PE500×750 500×750 425 50-100 40-110 55 11.7 2119×1918×2046
PE600×900 600×900 500 65-180 80-180 55-75 16.1 2309×2028×2368
PE750×1060 750×1060 630 80-180 110-320 90-110 30.1 2730×2472×2840
PE900×1200 900×1200 780 95-225 220-450 110-132 49.0 3362×2750×3260
PE1000×1200 1000×1200 850 195-280 280-550 110-132 51.2 3823×2938×3285
PE1200×1500 1200×1500 1020 150-300 400-800 160-220 100.9 4930×3334×4057

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Jaw Crusher is widely used for different projects all over the world. HAMAC exported the Jaw Crusher to different countries and got good comments from our clients.
