A new designed versatile machine, one stop solution for concrete mixing and pumping

A new designed versatile machine, movable and easily to be operated

According to the requirement of our clients, HAMAC researched and developed this twin shaft concrete mixer with pump. You can finish all the work by only one machine. It combines concrete mixer with concrete pump. When the concrete pump is working, the concrete mixer is also working. It will save your time to produce and deliver the concrete.

  • Diesel engine type and electric motor type
  • Twin shaft mixer for mixing
  • Can pump 70m high, 300m horizontal distance
Online Inquiry
Leave a message

Introduction

In the past time, the clients wanted to buy a concrete mixer to produce the concrete firstly, and then he also needed a concrete pumping machine to deliver the concrete to the buildings or jobsites. There will be two machines to finish the job. It required more people for the projects.

As a mature manufacturer of concrete pumping machines, HAMAC designed this series portable diesel concrete mixer with pump which is suitable for different projects. We have two options, one type is equipped with drum concrete mixer, another type is equipped with twin shaft concrete mixer which can mix the concrete uniformly.

Advantages

1. It combines mixing and pumping to reduce weight and space;
2. This mini concrete mixer with pump is convenient to transport in rural with high efficiency;
3. This model can save much labor and cost;
4. It is easily to be operated with remote controller;

Why choose HAMAC concrete mixer with pump?

1. Integrated structure frame, it is more stable and safer;
2. The glass plate and cut ring are made from high quality alloy, the hardness is 64HRC(Hardness of diamond is 70HRC);
3. Original SIEMENS PLC, main electric components are provided by OMRON;
4. 56/62/92 kW diesel engine as options for portable diesel concrete mixer with pump for sale, for different projects, the clients can choose the suitable machine;
5. 45mm steel plate for the bottom of hopper, much stronger to withstand greater pressure;
6. Compact design, the diesel engine built in the structure frame, smaller and more convenient for moving;
7. Equipped with twin shaft concrete mixer, 800L feeding hopper and 500Lconcrete output per batch, stronger and higher capacity; the quality of concrete will be better than common drum mixer;
8. Seamless steel pipe for concrete pumping; stronger than the common welded pipe;
9. We adopt the wearable and skidproof rubber wheel to drive the concrete mixer, its diameter is 380mm which is the biggest in China. It is covered by rubber from Malaysia, more wearable and longer service life;
10. Main hydraulic pump from KAWASAKI, valves from Italy OM. stable work performance;
11. Concrete delivery cylinder is 200mm diameter, and stroke is 1260mm, bigger and higher capacity; inwall is covered with high chrome, more wearable and longer service life;
12. Equipped with vibrator on the feeding hopper, reduce the residue material in the hopper.

Goods Delivery

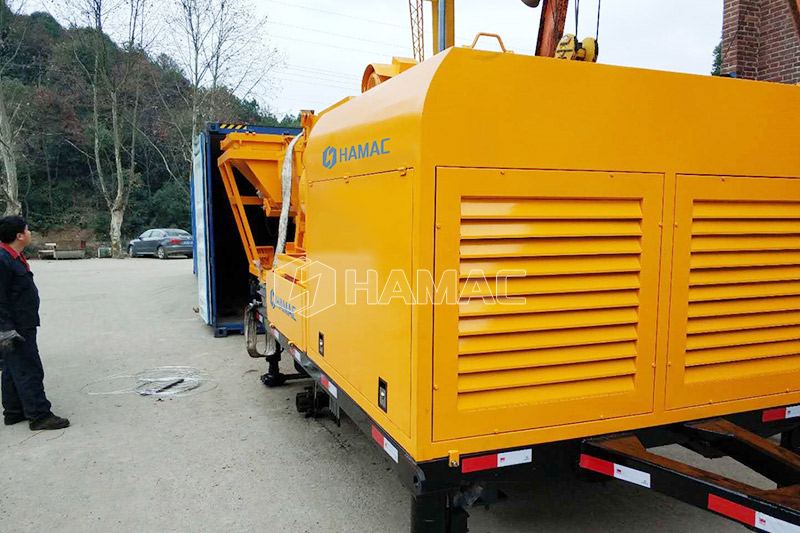

Based on good quality and decades of experience, the Twin Shaft Concrete Mixer with Pump which is manufactured by HAMAC was exported to different countries. The Twin Shaft Concrete Mixer with Pump will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

Parts Name/Parameters Parts Specification
Models HBT25 DHBT25
Power Power supply model Local electricity 3Phase Diesel generator
Electric Component  Siemens/Schneider/Omron
Mixing System Mixer JS500 twin shafts concrete mixer, 800L charging hopper, 500L concrete output per batch
Mixing Motor 18.5kW
Hoist Motor 5.5kW
Submersible Pump 0.75kW
Max. Theoretical Mixing Output 25m³/h
Pumping System Main Motor 37KW 120KW diesel generator(common brand & famouns brand options)
Mian Hydraulic Oil Pump KAWASAKI K3V112
Double Gear Pump 25&16
 Valves overflow and directional valves, top-class brand;
Main Oil Cylinder Φ100*Φ65*800mm
Delivery Cylinder Φ200*1000mm
S Valve Φ200mm
Cutting Ring Φ200mm
Glass Wear Plate Φ200mm
Max. Theoretical Pumping Output 40m³/h
System Pressure 28Mpa
Outlet Pressure 8Mpa
Hydraulic System Type Open circuit
Motor Rated Voltage Customized  Diesel generator
Max. Aggregate Size Pebble:40mm  Aggregate:30mm
Delivery height and horizontal distance 80m/260m
Hydraulic Oil Tank Volume 200L
Concrete Outlet Diameter  Φ180mm
Hopper Capacity × Filling Height 600*1400 (L*mm)
Machine Size(LxWxH) 5100*2200*2450 mm 6500*2210*2850
Total Weight 5600kgs 8000kgs
Tyre Size 700R16
Towing Speed Max. 8km/h

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Twin Shaft Concrete Mixer with Pump is widely used for different projects all over the world. HAMAC exported the Twin Shaft Concrete Mixer with Pump to different countries and got good comments from our clients.
