The concrete placing boom is an ideal device to assist the trailer concrete pump and truck-mounted concrete pumps. It is used to enlarge the pouring range of the concrete. There is a pipeline inlet under the concrete placing boom, just connect the pipeline of the pump to the pipeline under the concrete placing boom, then the concrete can be placed at different positions on the floor by the concrete placing boom.

  • 13-33m length boom as options
  • Famous brand hydraulic parts
  • Mobile type and stationary type
Online Inquiry
Leave a message

Introduction

The self climbing concrete placing boom machine is fixed in the elevator shaft and is equipped with an automatic climbing mechanism. Featuring a hydraulic self-climbing system, the placing boom is able to climb up alongside the lift shaft in the building with the rise of floor levels. The vertical reach of the placing boom relies on the performance of your concrete pump.

It is lifted by a hydraulic cylinder and automatically climbs in the elevator shaft, so that the concrete boom placer rises with the rise of the floor. It also can be fixed in the floor directly if there is not an elevator shaft.

Advantages

  • 1. Horizontal placing radius 21-32 meters (exclude 3m hose), full hydraulic driven;
  • 2. The concrete placing boom can be anchored to the floor with initially prepared holes when working, and it can be lifted by its climbing system. One lifting can meet the need for two floors concrete placement; If the floor area is too large, several tower bodies can be installed and move the boom assembly onto relevant tower body to meet the needs of certain area concrete placement and save cost;
  • 3. Compact structure, easy operation, reliable safety, economical and practical, it can be installed on either floor or elevator shaft.

Goods Delivery

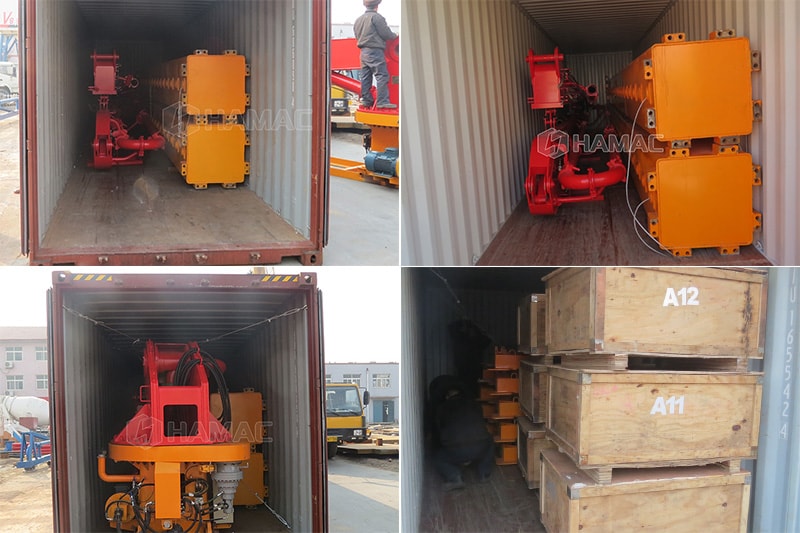

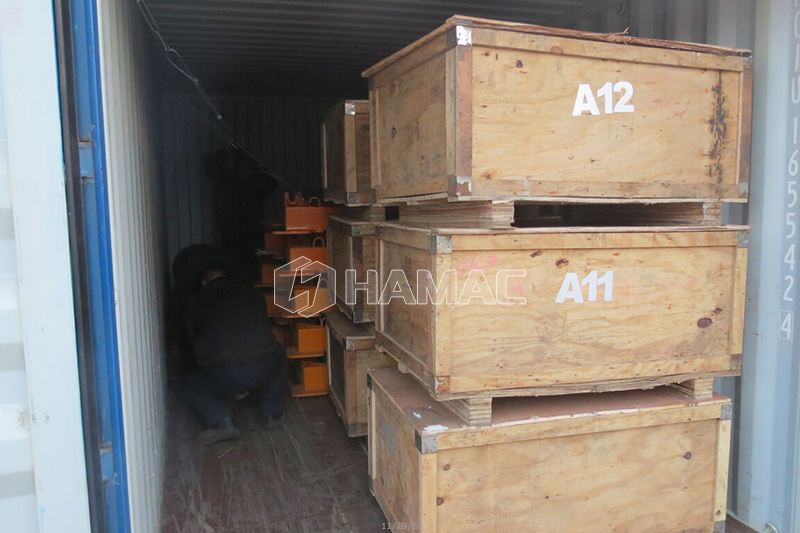

Based on good quality and decades of experience, the Self-climbing Concrete Placing Boom which is manufactured by HAMAC was exported to different countries. The Self-climbing Concrete Placing Boom will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

Item HGY21D HGY24D HGY28D HGY32D
Max. Placing
Radius (M)
21 24 27.5 32
Big Arm Length (M) 11 12 12.6 14.5
Big Arm Elevation (°) 0-65 0-65 0-65 0-65
Medium Arm Length (M) 6.5 7.5 8.8 9.2
Medium Arm
Elevation (°)
0-180 0-180 0-180 0-180
Small Arm Length (M) 3.5 4.5 6.1 8
Small Arm Elevation (°) 0-180 0-180 0-180 0-180
Hose Length (M) 3 3 3 3
Concrete Delivery
Pipe (Mm)
Ø125×6 Ø125×6 Ø125×6 Ø125×6
Tail Rotary Radius (M) 3.9 3.9 3.9 -
Total Power (Kw) 5.5 5.5 5.5 15
System Pressure (Mpa) 24 24 24 24
Rotary Speed (R/Min) 0.3-0.8 0.3-0.8 0.3-0.8 0.3-0.8
Rotary Range (°) 0-360 0-360 0-360 0-360
Lifting Speed (M/Min) 0.65 0.65 0.65 0.65
Lifting Height(M/Time) ≤3.6 ≤3.6 ≤3.6 ≤3.6
Overall Height (M) 13.3 13.3 12.6 22.9
Bare Machine Weight (Kg) 8400 9500 10720 16700
Balance Weight(Kg) 3×2000 3×2000 4×2000 -
Control Mode Panel/Wireless Remote Control

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Self-climbing Concrete Placing Boom is widely used for different projects all over the world. HAMAC exported the Self-climbing Concrete Placing Boom to different countries and got good comments from our clients.
