Modular Concrete Batching Plant

Modular Concrete Batching Plant

INTRODUCTION

The modular design without foundation and commissioning enables convenient and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. Cost effective. An ideal choice for engineering. The excellent performance is recognized in the several application fields, in the Concrete Industry as well as Industrial Plants (waste treatment, chemical industry, glass industry). Application industry: Concrete / Cement Products (Blocks, Pavers, Curbstones, Sleepers, Pipes, Rings), Precast Elements (Beams, Hollow Core, Safety Barriers, Wall Panels) ,Dam Construction, Road Paving, Industrial Floors, Architectural Precast, Waste Treatment, Foundries, Glass Industry, Mine Industry (muds treatment, backfilling),Soil Stabilization, Fertilizers.

Hot Sale in stock: HMC3.5 self-loading mixer - SICOMA Mixer - HZS60 Concrete Mixing Plant - DHBT40 concrete pump - DHBT40 concrete pump - HBT15 Concrete mixer and pump - DHBT15 Concrete mixing pump  - Get quote or inquiry!

inquiry! Leave a Message!

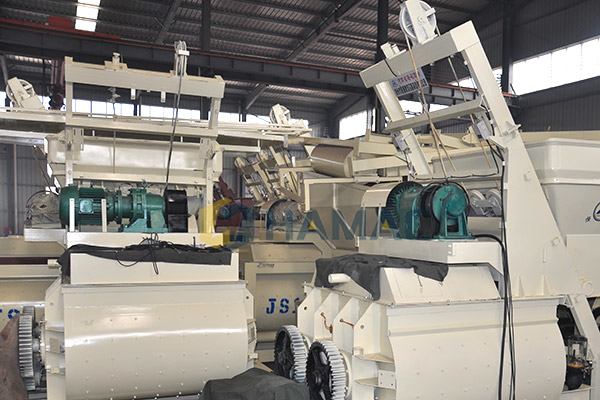

Detailed Photos

Specification

Item Type
YHZS60 YHZS90 YHZS120 YHZS180
Theoretical Productivity(m³/h) 60 90 120 180
Mixer JS1500/1000 JS2250/1500 JS3000/2000 JS4500/3000
Batching System PLD1600 PLD2400 PLD3200 PLD4800
Discharging Height(mm) 4000 4000 4200 4200
The Max. Diameter of the Aggregates(mm) 60(80) 60(80) 60(80) 60(80)
Transportation Dimension(L×W×H)mm 17500X2300X4300 / / /
