8cbm Concrete Truck Mixer

8cbm Concrete Truck Mixer video

INTRODUCTION

8cbm Concrete Mixing Truck is equipped with all-steel radial tyre as standard, which features high loading capacity, low rolling resistance, nice wear resistance, and good puncture-proof performance. The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.

Hot Sale in stock: HMC3.5 Self-loading Concrete Mixing Truck - 4m3 Concrete Mixing Truck   - 6m3 Concrete Mixing Truck  - 8m3 Concrete Mixing Truck   - 10m3 Concrete Mixing Truck   - HMC1.5 Self-loading Concrete Mixer HMC4.0 Self-loading Concrete Mixer  Get quote or inquiry!

inquiry! Leave a Message!

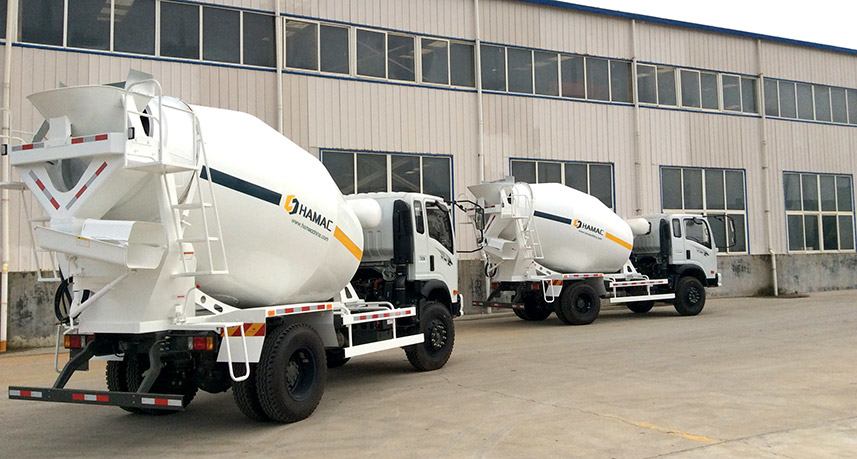

Detailed Photos

Specification

8 M3 TRANSIT MIXER TRUCK

Overall parameter
Overall dimension 8635x2485x3730mm
Kerb weight 10960kg
Mixing Drum parameter
Mixing drum material High quality wear-resistance steel
Model:Q345
Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity 8M3
Drum overall dimension(with frame) 6600*2500*2675mm
Mixing drum size Diameter: Φ2300mm    Length: 4730mm
Charging rate ≥3 m3/min
Top feed hopper dimension ≥650 mm
Discharging rate ≥2 m3/min
Residual rate ≤0.5%
Water supply Baric water supply system
Water tank capacity 450L
Radiator 18L
Reduction gear HL Reducer, Italy brand
Hydraulic pump Interpump, Italy Brand
Hydraulic motor Interpump, Italy Brand
Accessory Tool box
Chassis parameter
Chassis Brand SINO Truck  HOWO
Chassis model ZZ1257N3247W
Axle base 3225+1350mm
Driving type Right hand drive
Engine model WD615.69
Rated power (HP) 336HP
Emission standard Euro II
Fuel type Diesel
