An ideal equipment for hard stone quarry and mining industry

Multiple models for selection, can be customized according to customer requirements

SCC Series Single Cylinder Hydraulic Cone Crusher is a new and efficient crusher researched and designed autonomously on the base of our twenty years' experience in the crushing industry engaged in design, production, sales and service, combining with the development of modern industrial technology, and drawing advanced crusher technology from the United States, Germany and other countries. SCC series hydraulic cylinder cone crusher collects mechanical, hydraulic, electrical, automation, intelligent control technology into one set, and represents the world's most advanced crushing technology.

  • Full hydraulic design
  • Excellent final product shape
  • Small volume but high efficiency
Online Inquiry
Leave a message

Introduction

Single cylinder cone crusher is suitable for the crushing various minerals and rocks whose Platt's hardness are less than 16, such as iron ore, copper ore, gold ore, manganese ore, nonferrous metal ore, granite, limestone , quartzite, sandstone, pebbles, etc.

Working Principle of hydraulic cone crusher:

SCC single-cylinder hydraulic cone crusher is mainly composed of upper frame body, middle frame body (medium crushing type), lower frame body, moving cone part, eccentric sleeve part, transmission part, hydraulic cylinder part and other components.

When working, the motor drives the horizontal shaft to rotate, the horizontal shaft drives the eccentric sleeve to rotate through the gear, and then the eccentric sleeve drives the moving cone to swing in a circle, so as to continuously squeeze and crush the stones.

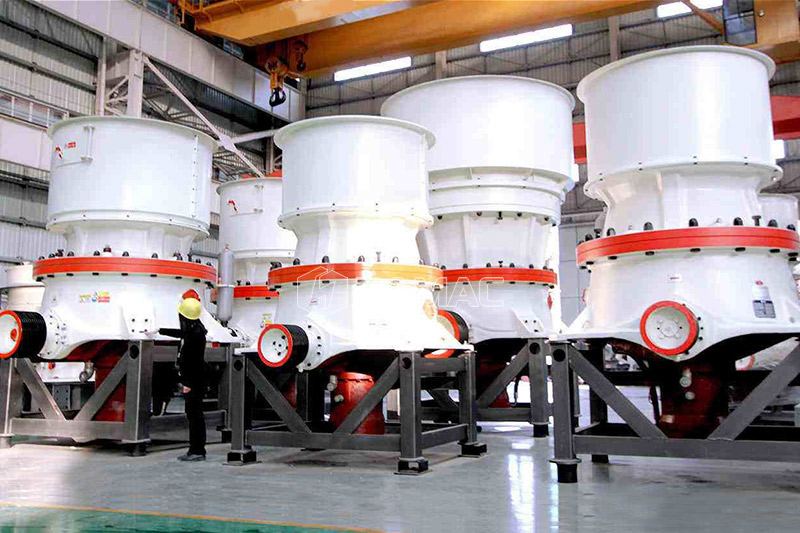

single cylinder cone crusher

Advantages

  • 1.Optimized design of crusher body and cavity, Enhanced frame structure design, non-destructive testing and acceptance of key parts, higher body strength and more reliable operation. The optimized crushing cavity design ensures that the crushing efficiency of the lamination is high, and the crushing effect of the equipment is not affected by the wear of the lining plate.
  • 2.Switch between multiple modes at will; the automatic control system provides users with various control modes such as manual control, automatic load, automatic discharge port and automatic double discharge port;
  • 3.The positive pressure dustproof system keeps the internal pressure of the crushing chamber higher than the external pressure, which effectively reduces the dust or other fine particles entering the crushing chamber to pollute the lubricating oil, damage the bearings, improve the service life of the crusher, and reduce the maintenance workload;
  • 4.Integrated hydraulic lubrication station, the integrated design of the hydraulic station and the lubrication station saves installation space; the hydraulic system is designed with high pressure to meet the general pressure requirements, and the equipment has a high pressure margin during operation, which improves the reliability of the hydraulic system.

Goods Delivery

Based on good quality and decades of experience, the Single Cylinder Cone Crusher which is manufactured by HAMAC was exported to different countries. The Single Cylinder Cone Crusher will be packed and loaded in our factory, and then be shipped to our clients safe and sound.

Technical Parameters

Model Cavities Maximum feeding size (mm) Minimum discharging size (mm) Capacity (t/h) Maximum install power (kw)
SCC100 S1(Extra Coarse) 240 22 85-125 90
S2(Medium Coarse) 200 19 70-95
H1(Fine) 135 10 46-128
H2(Medium Fine) 65 8 36-76
H3(Extra Fine) 38 4 27-57
SCC160 S1(Extra Coarse) 360 25 126-215 160
S2(Medium Coarse) 300 22 108-180
S3(Coarse) 235 19 91-165
H1(Fine) 185 13 69-215
H2(Medium Fine) 90 10 60-160
H3(Extra Fine) 50 6 45-105
SCC250 S1(Extra Coarse) 450 35 267-456 250
S2(Medium Coarse) 400 29 225-333
S3(Coarse) 300 25 195-317
H1(Fine) 215 16 110-380
H2(Medium Fine) 110 13 115-335
H3(Extra Fine) 70 8 90-235
SCC315 S1(Extra Coarse) 560 41 350-605 315
S2(Medium Coarse) 500 38 318-630
H1(Fine) 275 16 177-660
H2(Medium Fine) 135 16 195-500
H3(Extra Fine) 65 13 205-320

Note: Our products are being updated constantly, all rights reserved by HAMAC.

Application Case

The Single Cylinder Cone Crusher is widely used for different projects all over the world. HAMAC exported the Single Cylinder Cone Crusher to different countries and got good comments from our clients.
